A hand-painted in-frame kitchen seen on entering the room, with tall cupboards to one side.
Home  /  Projects  /  Catherine Place
Westminster, London · The Suffolk

Catherine Place

A hand-painted in-frame kitchen in the lower ground floor of a Westminster townhouse, with a curved walnut breakfast bar worked into the island and every appliance taken into the joinery.

The work

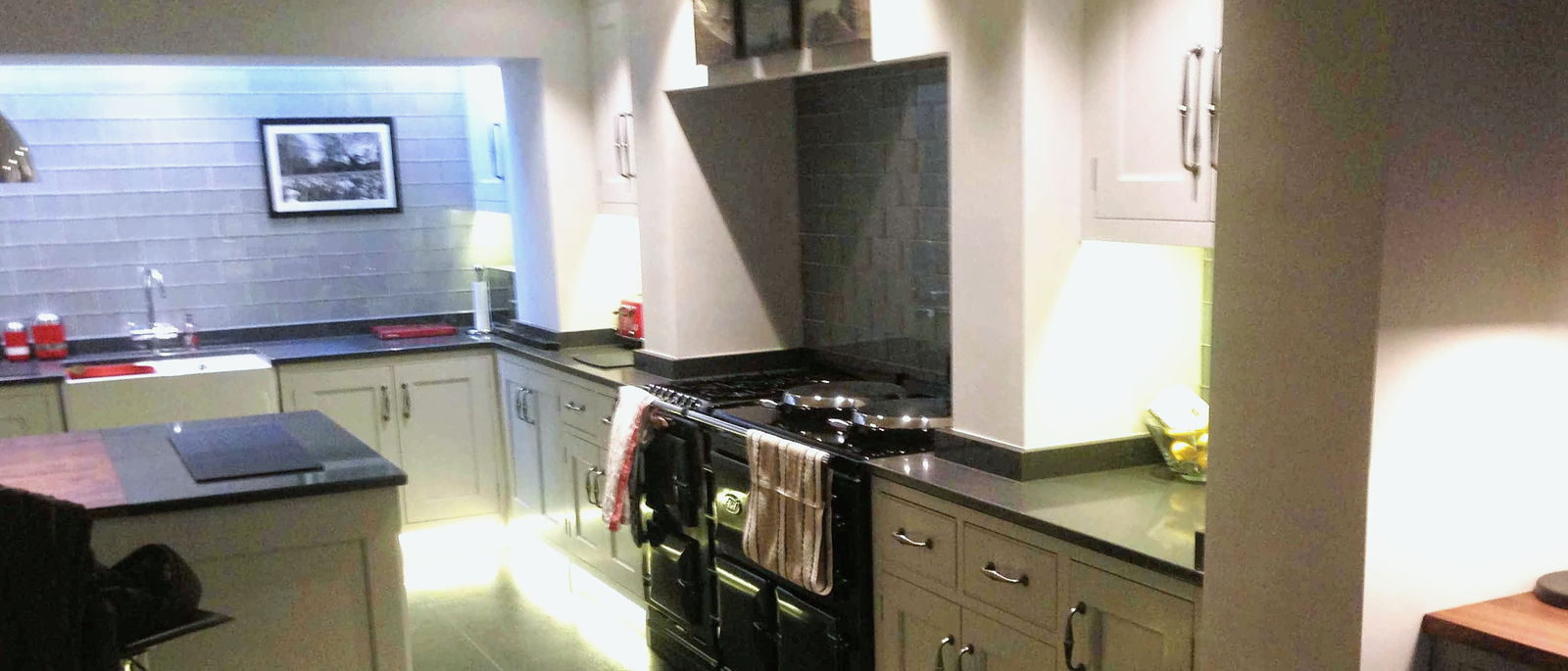

A basement kitchen in a terraced townhouse, which is the hardest place to put one. There is one window, the ceiling is low, and everything has to be reached from a single corridor. The answer here was to run the perimeter in dark stone against a white tiled wall and keep every tall element to one side, so the room reads as long rather than tight.

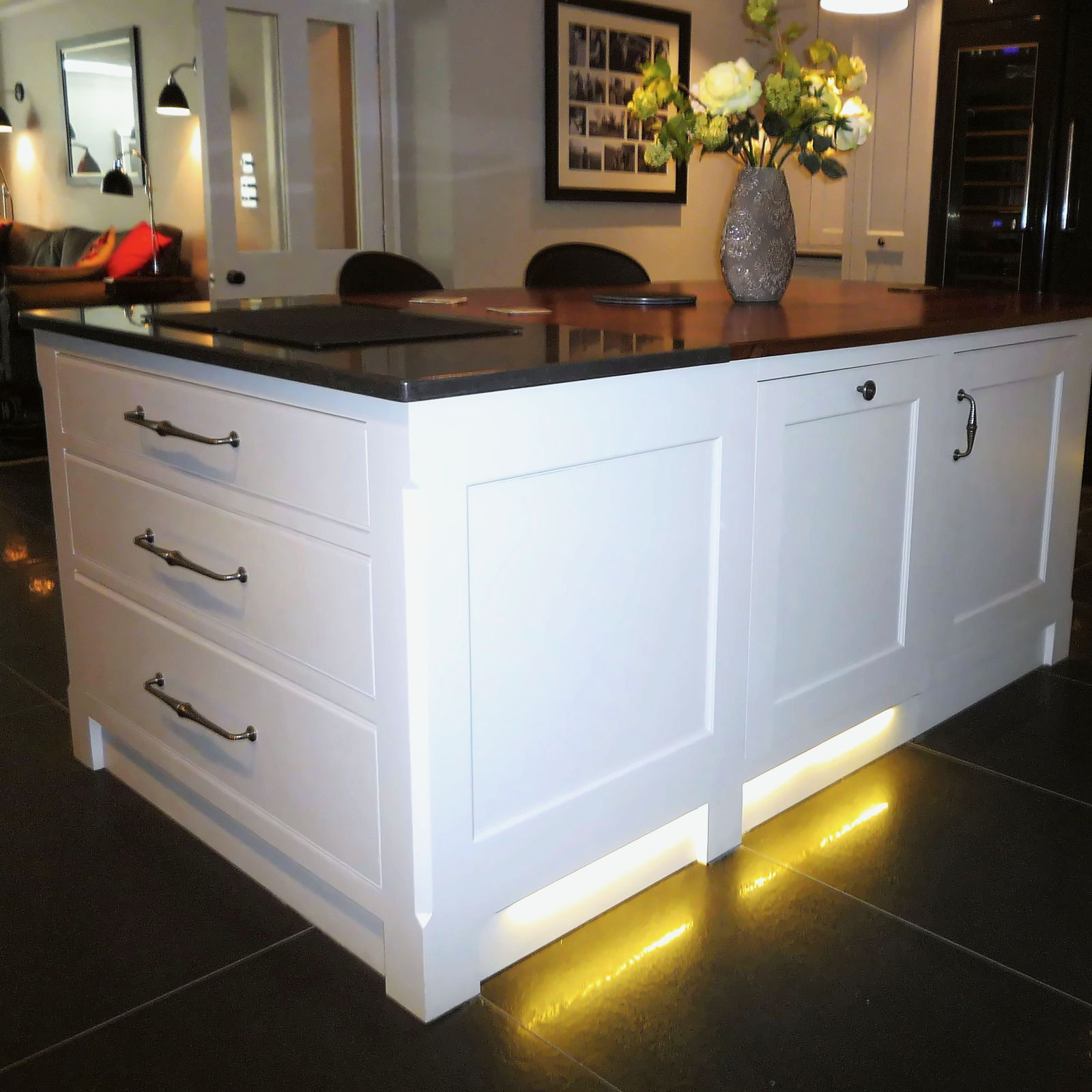

The island carries the hob and the preparation. Its end swells into a curved solid walnut breakfast bar, thicker than the stone and set slightly lower, so it is a table rather than an extension of the worktop.

Taking the appliances in

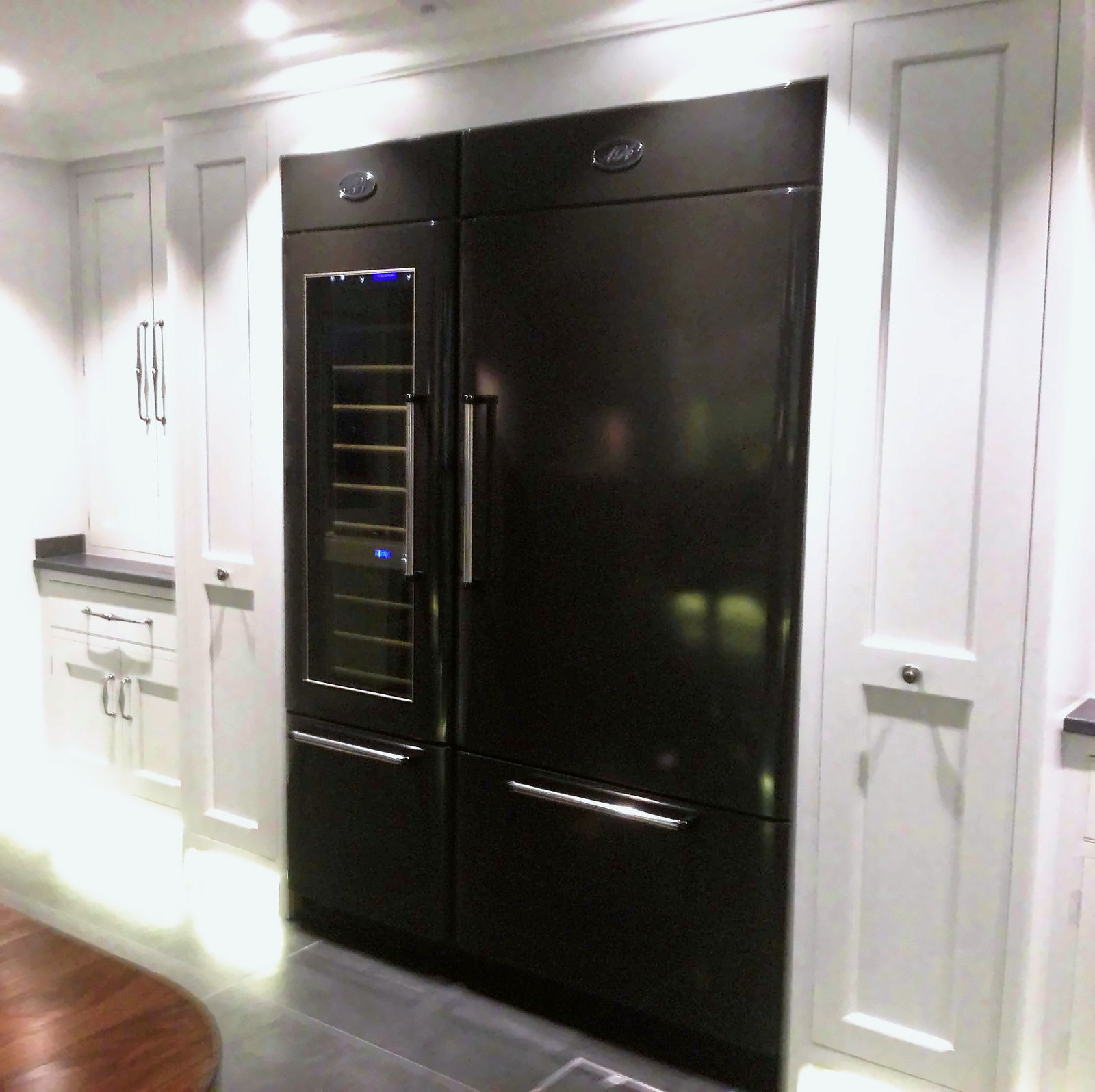

A refrigerator, a freezer and a wine cabinet sit in one bank of full-height painted joinery, framed as cupboards rather than left standing in a gap. That is more work than it looks: the frames have to be set out around the appliance carcass and its service clearances before anything is machined, and the doors either side have to line through with the appliance doors, not with each other.

The range sits under a painted canopy in the same language, so the wall of the room is one continuous piece of joinery from corner to corner.

Light at the plinth

The plinth is lit continuously along its whole length. In a basement this does something a downlight cannot: it lifts the floor, so the units appear to stand on light rather than sit in shadow, and the room does not close in at the bottom on a dull day.

Our clients’ kitchens are private, and most ask that they are not photographed or published. The images here are visualisations rather than photographs of a client’s house, built from our own workshop drawings and our own photographs of the work on site and finished with AI. None of it is stock imagery and none of it is somebody else’s work. If you would like to see drawings, samples and references for completed work, we will show you in person — visits to the Mickfield workshop are by appointment.

Specification

RangeThe Suffolk
Setting outDrawn in CAD, then again at full size as a rod pinned above the bench. Machining is taken from the rod, not the screen.
Carcass18mm birch-faced plywood, glued and screwed, 9mm backs housed in rather than pinned on. Adjustable feet throughout.
Face framesSolid timber, mortice and tenon, with scribed filler stiles where the joinery meets the building.
Drawer boxesSolid European oak, 16mm sides, through-dovetailed front and back by hand, waxed.
RunnersFull-extension soft-close, rated to 40kg.
Painted workFour coats, brushed by hand in our own finishing room, with the final coat cut in on site after fitting.
Oiled workHard-wax oil, applied and cut back three times.
FittingBy the people who made it. Nothing is subcontracted and nothing arrives flat-packed.
Full specificationDoor style, timber, finish reference, worktop, ironmongery and appliance schedule for this commission are available to specifiers on request.
Painted base units with tall cupboards in figured walnut, The Suffolk range by Square & TrueAn end-grain chopping surface let into the worktop, The Suffolk range by Square & TrueThe curved walnut end to a run of hand-painted cabinets, The Suffolk range by Square & True
